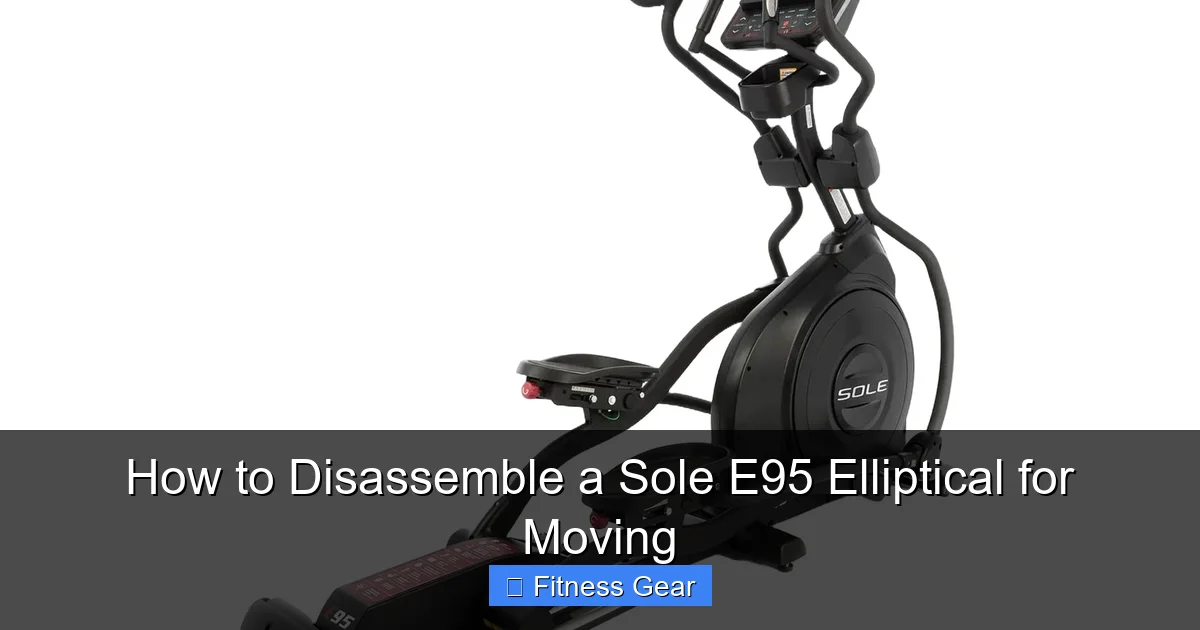

How to Disassemble a Sole E95 Elliptical for Moving

Disassembling a Sole E95 elliptical for a move requires careful planning, the right tools, and systematic labeling. This guide walks you through each critical step, from removing the console and arms to securing the heavy flywheel and base. Proper disassembly protects your investment, prevents injury, and ensures a smooth reassembly in your new home. Always prioritize safety and consult your owner’s manual for model-specific details.

Key Takeaways

• Preparation is everything: Clear space, gather tools (socket set, screwdrivers, wrenches, zip ties), and have your manual and a camera ready before starting.
• Document everything: Take clear photos of each connection point and cable routing before disconnecting anything. This is your reassembly blueprint.
• Label relentlessly: Use colored tape or labels to mark parts and corresponding holes (“Left Arm – Front Pivot”). Bag and label small hardware by step.
• The flywheel and base are the heaviest: These require at least two people. Never attempt to lift them alone to avoid serious injury or equipment damage.
• Protect all surfaces: Use moving blankets and cardboard to pad the disassembled parts and your floors/walls during the process.
• Keep it organized: Store all hardware for one major assembly (e.g., both arm assemblies) together in a sealed bag, taped to the relevant large part.
• Reassembly patience: Follow your photos in reverse. Do not fully tighten bolts until the machine is fully upright and all parts are correctly aligned.

Introduction: Why Proper Disassembly Matters

Moving a heavy, complex piece of fitness equipment like the Sole E95 elliptical trainer is a task that demands respect. It’s not just about brute force; it’s about intelligent disassembly. The Sole E95 is a robust machine with interconnected parts—a heavy flywheel, articulated arms, a delicate console, and a stable base. Trying to move it intact is a recipe for disaster: you risk damaging the internal components, stripping threads, cracking the housing, or, most critically, causing a serious back injury.

This guide is your definitive, step-by-step manual for taking your Sole E95 apart the right way. We’ll move methodically, with a focus on organization and safety. Think of it not as demolition, but as a careful deconstruction where every bolt and washer has a future home. By the end, you’ll have a neatly packed set of labeled components ready for safe transport and, later, a triumphant reassembly in your new space.

Phase 1: Essential Preparation Before You Touch a Bolt

Rushing into disassembly is the number one mistake. An hour of prep saves ten hours of frustration. Your goal here is to create a clean, organized workspace and gather every single tool and material you’ll need.

Clear the Area and Gather Your Team

Choose a spacious area, preferably a garage or a large room with a solid, level floor (concrete or hardwood is ideal). Move the elliptical away from walls and other furniture. You will need at least one strong helper, and two is significantly better for handling the flywheel and base. Ensure everyone wears closed-toe shoes and work gloves for grip and protection.

The Tool & Supply Checklist

Gather these items before you start. Missing one tool can halt your progress.

• Socket Set & Ratchet: 10mm, 13mm, and 15mm sockets are most common for the E95. An extension bar is crucial for reaching deep bolts.
• Hex/Allen Wrenches: A set of metric Allen keys (likely 4mm, 5mm, 6mm) for the console and arm bolts.
• Adjustable Wrenches & Screwdrivers: Standard and Phillips head screwdrivers, and a good adjustable wrench for any odd nuts.
• Heavy-Duty Zip Ties & Plastic Bags: For bundling wires and organizing hardware. Quart and gallon-sized freezer bags are perfect.
• Moving Blankets & Cardboard: To pad every surface and create a safe work zone on the floor.
• Permanent Marker & Masking Tape/Colorful Duct Tape: For labeling parts and hardware bags. Use different colors for left/right or front/back.
• Camera (Phone is fine): Take photos from multiple angles of every connection before you undo it.
• Owner’s Manual: Keep this open to the assembly section. It’s your primary reference for bolt locations and torque specs if available.
• Basic Helper’s Tools: A small pry bar, rubber mallet, and a set of pliers can be lifesavers for stubborn parts.

Initial Safety and Power Down

Unplug the elliptical from the wall. If it has a power adapter, disconnect it. Ensure the machine is in the lowest resistance setting and the pedals are positioned neutrally. Take a moment to wipe down the machine; you don’t want to be handling greasy parts later. Finally, do a quick visual inspection for any already loose parts or previous damage.

Phase 2: The Systematic Disassembly – Step-by-Step

We will work from the top (most delicate) down to the base (heaviest). This order prevents you from accidentally removing support for something you haven’t disconnected yet. Follow this sequence precisely.

Step 1: Console & Upright Post Removal

The console is the most sensitive and expensive part. Handle it with extreme care.

• Disconnect All Cables: With your photos as a guide, locate all wire harnesses connecting the console to the machine. They are typically clip-on or plug-in connectors. Press the release tabs firmly and pull straight out. Do not yank on wires.
• Remove the Console: The console usually sits on a mounting bracket at the top of the main upright post. Using the appropriate Allen wrenches, remove the bolts securing the console to this bracket. Once free, carefully lift the console straight up and set it aside on a padded surface, screen-down.
• Remove the Upright Post: The main upright post that supported the console is now exposed. It is typically secured to the main frame with 2-4 large bolts. Support the post with one hand as you remove the final bolt, then carefully lower it. This is a long, awkward piece—have your helper ready. Pad it and lay it flat.

Step 2: Handlebar / Arm Assembly Disconnection

The moving arms are connected to the flywheel mechanism and the main frame. This is a critical disconnection point.

• Locate the Pivot Points: At the end of each arm, you’ll see a pivot point where it connects to the lower “leg” or directly to the frame. There is also a connection near the top where the arm meets the roller assembly.
• Remove the Arm Pivot Bolts: Using your socket set, remove the large bolts and any pivot bushings or spacers at these joints. Crucially: These bolts are often the only thing holding the entire arm assembly to the machine. Support the arm’s weight as you remove the last bolt. They are heavy.
• Free the Arm Assemblies: Once both pivot points on one side are free, you can carefully lift the entire left arm/leg assembly away from the machine. Repeat for the right side. Place each complete assembly on a moving blanket. Note: On some models, the upper and lower arms may separate. If so, label them “Left Upper” and “Left Lower” before separating.

Step 3: Pedal Crank & Flywheel Cover

Now we access the heart of the machine.

• Remove the Pedals: Simply use a wrench to loosen the pedal crank arms from the main spindle. Turn the right pedal clockwise to loosen, the left counter-clockwise. Set pedals aside in a labeled bag.
• Remove the Flywheel Cover: This is the large plastic shroud covering the flywheel and belt/drive system. It is held by numerous screws (often Phillips head). Remove all of them. The cover may have tabs that slot into the frame. Gently pry or lift it off once screws are out. Set it aside carefully; it can crack.
• Inspect and Clean: With the cover off, take a moment to see the belt or chain drive system. Do not disassemble this unless you absolutely must. Just ensure it’s secure.

Step 4: The Flywheel & Drive System (The Heaviest Part)

This is the most dangerous step. You must have at least two capable helpers.

• Secure the Machine: Ensure the base is stable. Have one person brace the main frame from tipping.
• Locate the Flywheel Axle: The heavy metal flywheel is mounted on an axle that runs through the frame. It is held in place by large nuts or bolts on either side of the frame.
• Remove the Retaining Hardware: Using your largest socket (likely 17mm or 19mm), loosen and remove the nuts/bolts on both sides. Do not remove them completely at first. Loosen them evenly, 1-2 turns on each side in sequence, until the axle is free.
• Support and Extract: One helper should now slide a sturdy piece of wood or a helper’s hand under the center of the flywheel to support its immense weight. Now, carefully slide the axle out from one side. The flywheel will now be free but still heavy. Do not let it drop. With the axle out, you can gently lower the flywheel straight down and set it on its edge on a padded blanket. It is best to leave it connected to the belt/chain if possible, but if space is tight, you may need to slide the belt off. Label it “FLYWHEEL – HEAVY – HANDLE BY AXLE ENDS ONLY.”

Step 5: Separate the Main Base and Frame

With the arms and flywheel off, the core frame should now be relatively light.

• Check for Remaining Connections: Ensure all wiring harnesses are disconnected and all bolts joining the front and rear stabilizer bars to the main beam are removed.
• Lift the Main Frame: The main beam, with its resistance motor and internal components, should now be liftable by two people. Carefully lift it straight up and off the base stabilizers. Set it on a padded blanket.
• Disassemble the Base: The base is usually two or three separate plastic or metal stabilizer bars. They are lightweight and held together with bolts. Disassemble them completely for the flattest packing. Label each piece (“Rear Bar,” “Front Left Bar”).

Phase 3: Packing, Protecting, and Moving

Your machine is now in parts. How you handle these parts determines if they arrive at your new home in one piece.

Protection and Wrapping Protocols

Every single piece, no matter how sturdy it seems, needs padding.

• Console & Electronics: Wrap in a static-free bag or bubble wrap, then a moving blanket. Keep it flat and never place heavy items on top.
• Flywheel: This is your most critical part. Cradle it in a moving blanket, securing it with tape. If possible, place it in a dedicated, sturdy box or crate. Mark all sides with “HEAVY – GLASS” (even if it’s not glass, it warns handlers).
• Frame Beams & Arms: Wrap each long piece in a moving blanket and secure with tape or stretch wrap. This prevents scratches and dings.
• Hardware: Each bag of bolts should be taped securely to the large part it belongs to (e.g., tape the “Arm Bolts” bag to the left arm assembly). Have a master “Hardware” box for any leftover small parts, but keep them segregated by assembly step.

Loading Strategy for the Truck

Load like with like, and place heaviest items on the bottom and towards the front of the truck.

• First Layer: Place the padded base stabilizers and other flat, light parts against the front wall of the truck.
• Second Layer: Place the wrapped main frame beam and arm assemblies on top of the base, nestled against each other.
• Top/Center: Place the heavily padded flywheel and console on top, but not so high that they shift. Fill all gaps with smaller parts or more blankets to prevent shifting.
• Final Security: Use ratchet straps to tie the entire load to the truck’s anchor points. A shifting 50lb flywheel can become a 50lb projectile.

Phase 4: Reassembly at Your New Home

Reassembly is the reverse of disassembly, but patience is your greatest tool. Do not rush to tighten bolts.

Setting the Foundation

Choose a level, solid surface. Have your photos, labels, and tools ready. Unpack and lay out all major components in the room where the machine will live. Group them: base parts, frame, arms, console, flywheel. Verify you have all hardware bags. This visual inventory prevents mid-assembly panic.

Rebuilding in Reverse Order

1. Assemble the Base: First, bolt together the stabilizer bars according to your manual and labels. Place the assembled base on the floor.
2. Mount the Main Frame: Carefully lift the main beam and lower it onto the base brackets. Hand-tighten all bolts first. Do not use tools yet.
3. Install the Flywheel: This is still the heaviest part. With one person supporting the flywheel, slide the axle through the frame bushings. Hand-thread the retaining nuts/bolts on both sides. Only then, using your socket, tighten them evenly and firmly in a cross-pattern. The flywheel must spin freely without wobble.
4. Reattach Arms: Lift each arm/leg assembly into position. Align the pivot holes using your photos as a guide. Insert the pivot bolts with their bushings/spacers. Hand-tighten all.
5. Reinstall Pedals & Crank: Screw the pedals back on (right pedal clockwise, left counter-clockwise). Tighten firmly.
6. Reconnect the Drive System: If you removed the belt, now is the time to re-route it over the flywheel and motor pulley. This can be tricky; your photos are essential. Ensure it is seated properly in the groove.
7. Reattach Upright Post & Console: Mount the upright post to the frame. Then, carefully connect all wire harnesses from the console to the machine, matching colors and keying. Finally, bolt the console to the post.

Final Checks Before First Use

Once everything is bolted in place:

• Go through and tighten all bolts, especially the critical pivot points and flywheel retainers, to the manufacturer’s specified torque if you have a torque wrench. If not, tighten them all firmly and evenly.
• Manually move each pedal through its full rotation. It should be smooth, with no binding, clicking, or rubbing. Listen for any unusual sounds from the flywheel area.
• Plug in the machine. Power it on and navigate the console menu. Check that all displays, fans, and buttons work.
• Set resistance to level 1 and pedal slowly for 5 minutes. Listen and feel. If anything seems off, power off and re-check your work, especially belt tension and bolt tightness.

Conclusion: The Satisfaction of a Job Done Right

Disassembling and moving your Sole E95 elliptical is a significant undertaking, but it’s entirely manageable with a methodical approach. The core principles are universal: prepare obsessively, document religiously, label maniacally, and move carefully. By treating the process as an exercise in organization rather than a chore, you protect your valuable fitness equipment, safeguard your physical well-being, and set yourself up for a seamless transition. The moment you complete that first smooth, quiet pedal stroke in your new home, the hours of careful labeling and tightening will feel 100% worth it. You haven’t just moved a machine; you’ve preserved a key tool for your health, ready for many more miles in a new location.

Frequently Asked Questions

What is the most important safety rule when disassembling a Sole E95?

Never attempt to lift or support the flywheel or main frame alone. These are extremely heavy, unbalanced parts that can cause severe injury. Always use at least two people for these steps and plan your lifting path carefully.

Do I need any special tools beyond a basic socket set?

A good metric socket set (10mm-19mm), a set of Allen wrenches, and screwdrivers are essential. A rubber mallet can help with stubborn parts, and a torque wrench is ideal for final tightening but not strictly necessary if you tighten bolts firmly and evenly.

How can I protect my floors during disassembly?

Lay down thick moving blankets or cardboard sheets across your entire work area before you start. This protects hardwood, laminate, or tile from dropped tools, hardware, and the weight of the parts. It also provides a clean surface to lay parts on.

Can I move the elliptical without full disassembly?

While possible for very short distances on the same floor (using a dolly and many people), it is strongly discouraged for any actual moving or going up/down stairs. The risk of damage to the internal drive system, bent legs, and personal injury is extremely high. Full disassembly is the only safe method.

What is the most common mistake people make during reassembly?

Failing to properly align parts before tightening bolts. Rushing to tighten a bolt can force a hole out of alignment, making it impossible to connect other parts later. Always hand-tighten all bolts first to ensure perfect alignment, only using tools for the final tightening pass.

How long should the entire process take?

For two inexperienced people, budget 3-5 hours for disassembly and 2-4 hours for reassembly, plus packing/transport time. With experience and good organization, you can cut this time significantly. Rushing will only lead to errors and rework.
